What Is a Height Gauge? Parts, Uses & How to Use

Published: 5 Jul 2025

Measuring things with accuracy is very important in factories and workshops. But how do workers measure small heights or mark lines correctly? That’s where a height gauge comes in. It’s a smart tool that helps you measure height and mark lines with high precision. Let’s learn what it is, how it works, and why it’s used in so many industries.

What is a Height Gauge?

A height gauge is used to determine vertical distances or the height of objects. It stands upright on a flat base and features a movable pointer, called a scriber, which moves up and down to take accurate measurements.

Height Gauge Uses

Height gauges are used in many places. Here are some common uses:

Gives accurate height readings of objects.
Marks accurate layout lines on work pieces
Compare the height of two or more parts
Measures step heights, grooves, and slots
Helps in quality control and final inspection
Ensures parts meet design tolerances and standards

These gauges help to ensure that products are made perfectly and all parts are the right size.

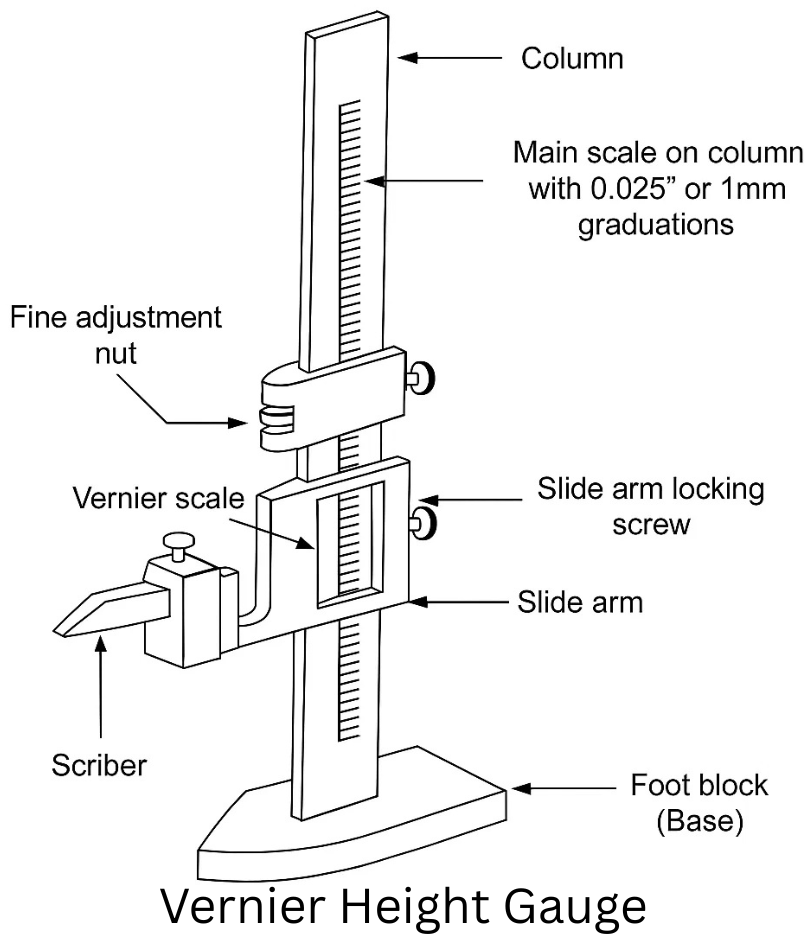

Height Gauge Parts

A height gauge has several main parts:

Base – Keeps the tool stable on the surface

Vertical Scale – Shows the height measurement

Scriber or Pointer – Used to mark lines or take measurements.

Fine Adjustment Knob – Helps in making small changes for better accuracy

Dial or Digital Display – Shows the reading clearly

Each part works together to give a correct and easy reading.

Types of Height Gauge

Vernier Height Gauge – Uses a vernier scale for reading, very basic and manual

Dial Height Gauge – Has a dial for easier, quicker readings than a vernier type.

Digital Height Gauge – Has a digital screen and is easy to use

Electronic Height Gauge – Advanced digital type with data output for high-precision use.

All types do the same job but with different levels of ease and precision.

How to Use a Height Gauge

Using a height gauge is easy if you follow these steps:

Place the tool on a flat surface plate.
Set the object next to the base.
Adjust the scriber or pointer to touch the top of the object.
Lock the scriber in place.
Read the value on the dial or screen

Make sure the tool is clean and flat before using it. Always read carefully for better results.

Conclusion

A height gauge enables highly accurate measuring and scribing in manufacturing, metalworking, and quality inspection. Using this tool can help improve your work. Now that you know how it works, why not try one and see the difference?

FAQs

What is the price of a height gauge?

The price depends on the type. Vernier height gauges usually cost between $30 to $50, while digital models range from $100 to $200 or more, depending on features.

What is the least count of a height gauge?

The least count of a height gauge is typically 0.02 mm for vernier models, with digital versions offering even greater precision.
