Difference Between Open Belt Drive and Cross Belt Drive

Published: 3 Aug 2025

Belt drives are widely used in machines for transmitting power from one shaft to another. They’re simple, cost-effective, and great for transferring motion between pulleys. Two commonly used belt drive systems are the open belt drive and the cross belt drive. Although they may appear similar, they function differently. Want to know which one suits your machine better? Let’s examine the key differences straightforwardly and clearly.

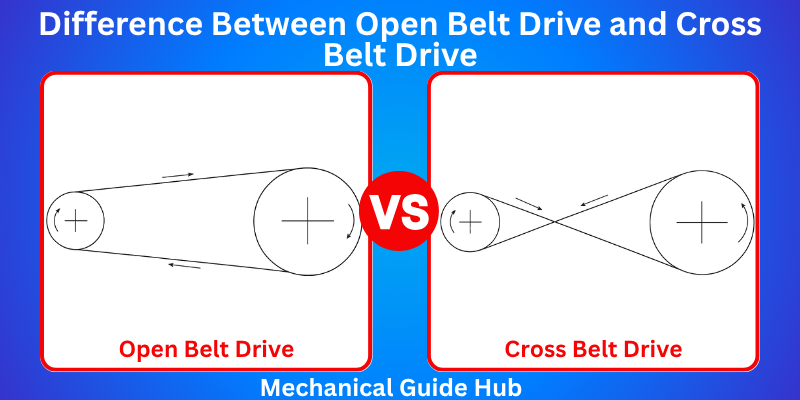

Open Belt Drive vs Cross Belt Drive

Features	Open Belt Drive	Cross Belt Drive
Direction of Rotation	With an open belt drive system, both the driving and driven shafts turn in the same direction.	A crossed belt drive reverses the rotation between the driving and driven shafts.
Power Transmission	Transfers less power than a cross belt.	It can handle more power, provides a better grip, and has a wide wrap angle.
Angle of Contact	Has a smaller angle of contact, which increases the chance of slipping.	Offers a greater angle of contact, reducing slippage and improving grip.
Wear and Tear	Lower wear and tear because the belt runs along a straight line.	High wear due to contact where the belt crosses itself.
Belt Length	A shorter belt length is needed.	Requires a longer belt to perform the crossover.
Belt Whipping	May cause belt whipping at high speeds or long distances.	The crossed layout reduces whipping and keeps the belt stable.
Shaft Arrangement	Works well when the shafts are parallel and close together.	Can handle a wider spacing between shafts.
Maintenance and Alignment	It’s easy to maintain and requires less maintenance effort.	The belt needs careful alignment to avoid unwanted wear.
Safety	Safe to use, as there are no crossing points.	The crossover part can be risky if not properly guarded.
Efficiency	It may have less efficiency due to slippage.	More efficient because of a better grip and less slipping.
Tension Adjustment	Easy to adjust belt tension.	Needs careful tension control to avoid twisting or damage.
Cost	Usually less expensive to build and maintain.	Slightly more expensive due to the longer belts and extra care needed.
Speed Ratio Flexibility	Good for applications where speed ratios don’t change often.	More stable at different speed ratios due to a strong grip.

Conclusion

Choosing between an open belt drive and a cross belt drive depends on your needs. If your shafts need to turn in the same direction and the setup is simple, an open belt drive is perfect. But if you need higher power and opposite rotation, a cross belt drive is a better choice.

Both types have their strengths. Understanding these differences will help you select the right system for better performance and longer machine life.
